LCH-TR3 3-IN-1 SUPER TESTER (+CRT-511 + 20 sensors) *Fall 2025 Q4* 2

LCH-TR03 (4 in 1) Super Tester w/o Endoscope

LCH-TR3  is a multifunctional 4-in-1 laser technology tool. Smart tire tread reader displays tire measurement on screen quickly and accurately without tire removal. It is also a brake fluid tester, battery tester and optional endoscope.

• Tire Tread Reader generates a real time tire health analysis. Color representation diagram of the state of wear, displaying the tire wear analysis with suggestions for replacement & maintenance.
• Brake Fluid Inspection - Easy to read report with percentages and color indication of state of the fluid. Quick percentage reading of moisture in brake fluid and hydraulic clutch fluid.
• Battery Tester real-time viewing test report, saves and records all history reports. Includes readings of voltage, resistance, SOC and SOH data. Color representation of the state of the battery. Red, yellow, and green indicator lights for easy reading of brake fluid quality.

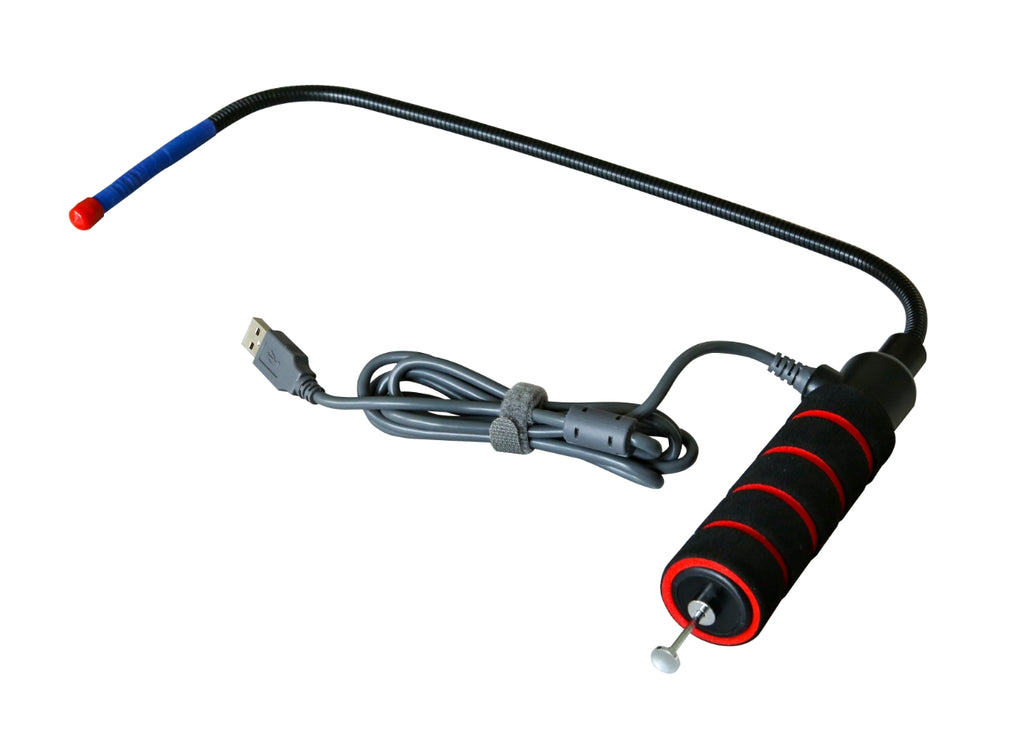

• Optional Endoscope - Real time view or different components, save images and videos capabilities.

Specifications

• Size: 205.5 x 127.5 x 36mm
• Weight: 652g
• Ram Memory: 2G
• Storage: 8G
• Operating System: Ubuntu
• Battery: 3.85V/6400mAh
• Touch Screen: 5.5’ TFT-LCD 1280 x 720
• Interface: WIFI\USB2.0\Type-C\port for battery inspection \ port for brake fluid inspection \TF
• Camera: 5 megapixels
• Charger: 5V\2.1A
• Operating Temp: -10 -45˚
• Storage Temp: -20 -60˚

Download Product Sheet

LAUNCH CRT-511 Diagnostic Tool is a powerful and versatile tool that offers 98% coverage of global vehicles with a tire pressure system. It is ideal for repair shops or tire shops to easily and accurately find and diagnose the faulty tire pressure sensor, read tire sensor status, read and clear tire pressure DTCs, and reset, relearn and reprogram TPMS sensors.

Features:

• Covers over 98% of global vehicles with tire pressure system
• Activate and match with all 315 MHz/ 433 MHz tire pressure sensors
• Reset, relearn and reprogram tire pressure sensors fast
• Diagnose the tire pressure issues, read and clear tire pressure DTCs
• Reprogramming LAUNCH sensors with unlimited times
• Read tire pressure, tire temperature, and battery status accurately
• Reprogram up to 8 sensors at one time
• Built-in learning tutorial for easy operation
• Multiple ID generation methods: Manual creation, Copy ID, Automatic creation
• OBD II / EOBD functions included

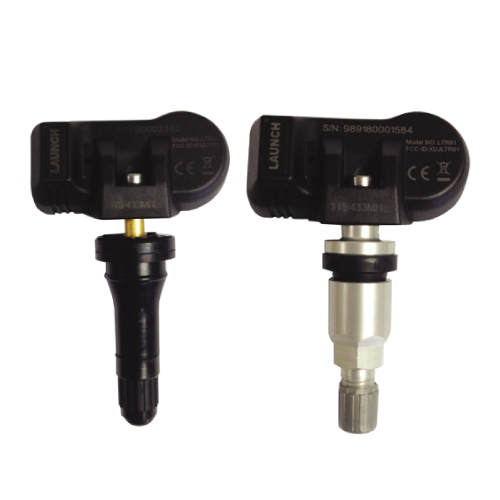

• 4 Rubber Sensors (PRO version only)
• 4 Metal Sensors (PRO version only)

Specifications:

• Display: 3.5 inch
• Resolution: 320*480 Pixel
• Battery: 3100 mAh
• Input Voltage: DC 5V
• Working Temperature: -20℃～70℃
• Storage Temperature: -20℃～70℃
• Size: 200*115*35 mm
