LAUNCH X-431 ADAS MOBILE - Standard Kit

SKU: X-431 ADAS MOBILE - Standard Kit

LAUNCH X-431 ADAS Mobile is a portable ADAS calibration tool for calibrating the ADAS system and is ideal to target new revenue streams.

  Attn: Windshield Replacement Shops. Front Camera (LDW) Calibration

  • Start to calibrate in seconds, no more tedious work of disassembly and installation
  • Fully foldable design including completely flat folded base, close-fitting foldable arms, and foldable crank handle

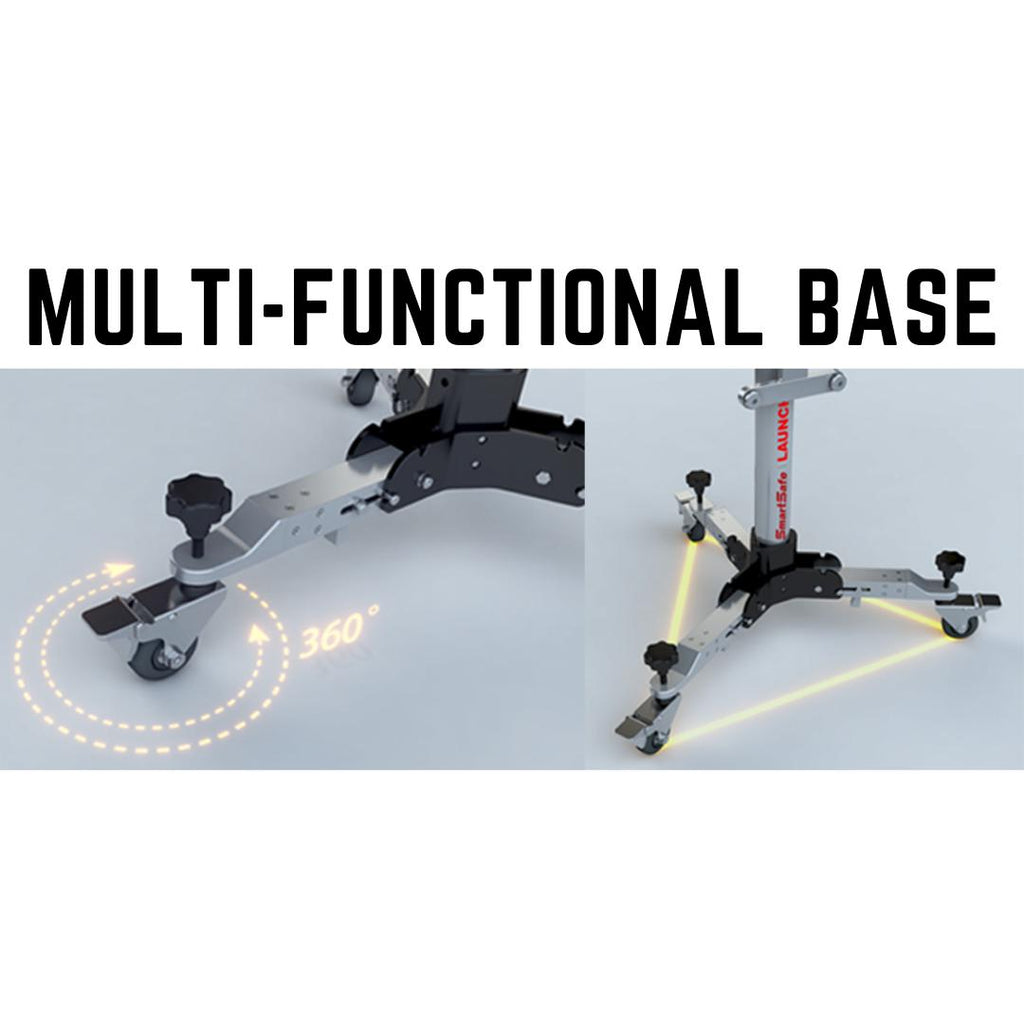

  • Multi-functional base integrates 360° rotating wheels, wheel locks, and fine-tuning height-adjustment to adapt to uneven ground
  • The equilateral triangle design of the base ensures a stable frame

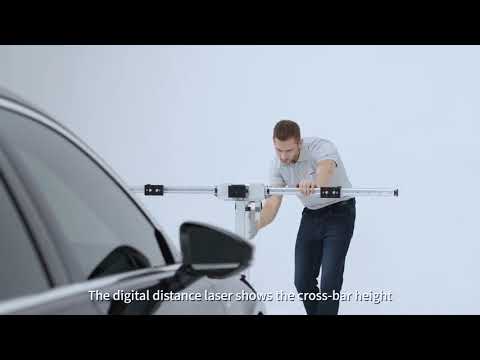

  • Digital distance laser shows the cross-bar height and makes sure it is equal to the standard value precisely
  • Five line laser and fine-tuning switch help to easy center the device and parallel to the vehicle and offer high precision calibrating
  • Special small target design makes it convenient to carry and store
  • 23-style manufacturer standard targets provide a one-stop calibration service
  • Compatible with AVM/ RCW/ BSD Targets of LAUNCH ADAS system
  • Quick access to ADAS calibration by step-by-step tutorial graphics on LAUNCH X-431 diagnostic tools
  • Supports the following vehicle makes: GM, Ford, Chrysler, Buick, Cadillac, Chevrolet, Dodge, Jeep, Lincoln, Mercedes-Benz, BMW, Audi, Volkswagen, Land Rover, Jaguar, Volvo, Fiat, Opel, Seat, Skoda, Renault, Citroen, Smart, Mini, Peugeot, Porsche, Kia, Hyundai, Toyota, Lexus, Honda, Acura, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Daihatsu, Mazda (list is continuously updating. Please contact Launch dealer to get the latest coverage)
  • NB: scan tool not included

ADAS Vehicle Coverage Inquiry (Click Here)

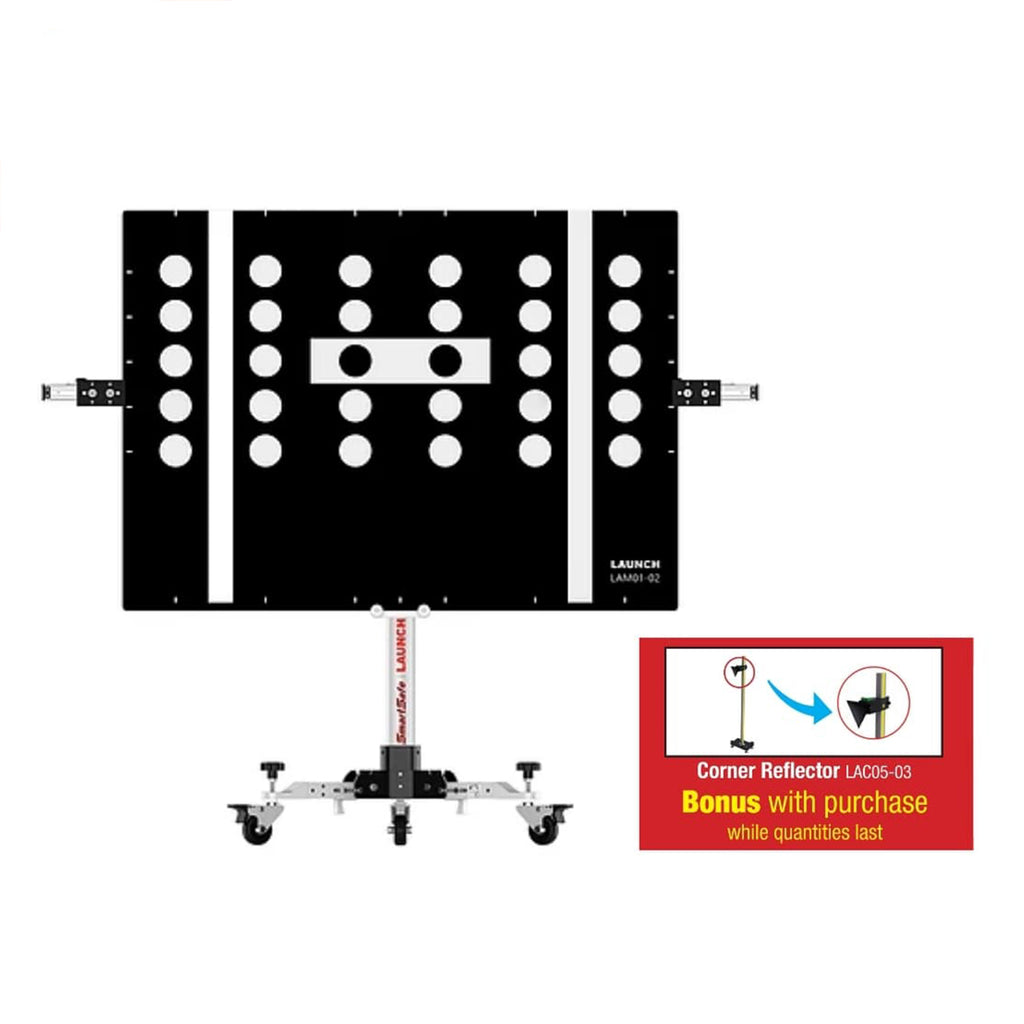

  • LAUNCH X-431 ADAS Mobile
  • Five Line Laser
  • Cross Laser
  • Laser Reflector
  • Auxiliary Mirror
  • L-Type Positioning Bracket
  • Lead Hammer

Targets Included

  • X-431 ADAS Corner Radar Reflector LAC05-03 (Limited Time Offer)
  • Mercedes-Benz LAM01-01
  • VW LAM01-02
  • Honda LAM01-04-L
  • Honda LAM01-04-R
  • Toyota LAM 01-06-1
  • Toyota LAM 01-06-2
  • Toyota LAM 01-06-3
  • Toyota IV 701020173
  • Nissan LAM 01-07-L
  • Nissan LAM 01-07-R
  • Hyundai/Kia LAM01-09
  • Mazda LAM01-10
  • Nissan/Renault LAM 01-12-L
  • Nissan/Renault LAM 01-12-R
  • Hyundai LAM01-13
  • Subaru LAM01-15
  • Honda LAM01-20
  • Mazda LAM 01-16-L
  • Mazda LAM 01-16-R
  • Honda LAM01-17
  • Suzuki LAM01-18-L
  • Suzuki LAM01-18-R
  • Mitsubishi LAM01-19-L
  • Mitsubishi LAM01-19-R

Media & Support

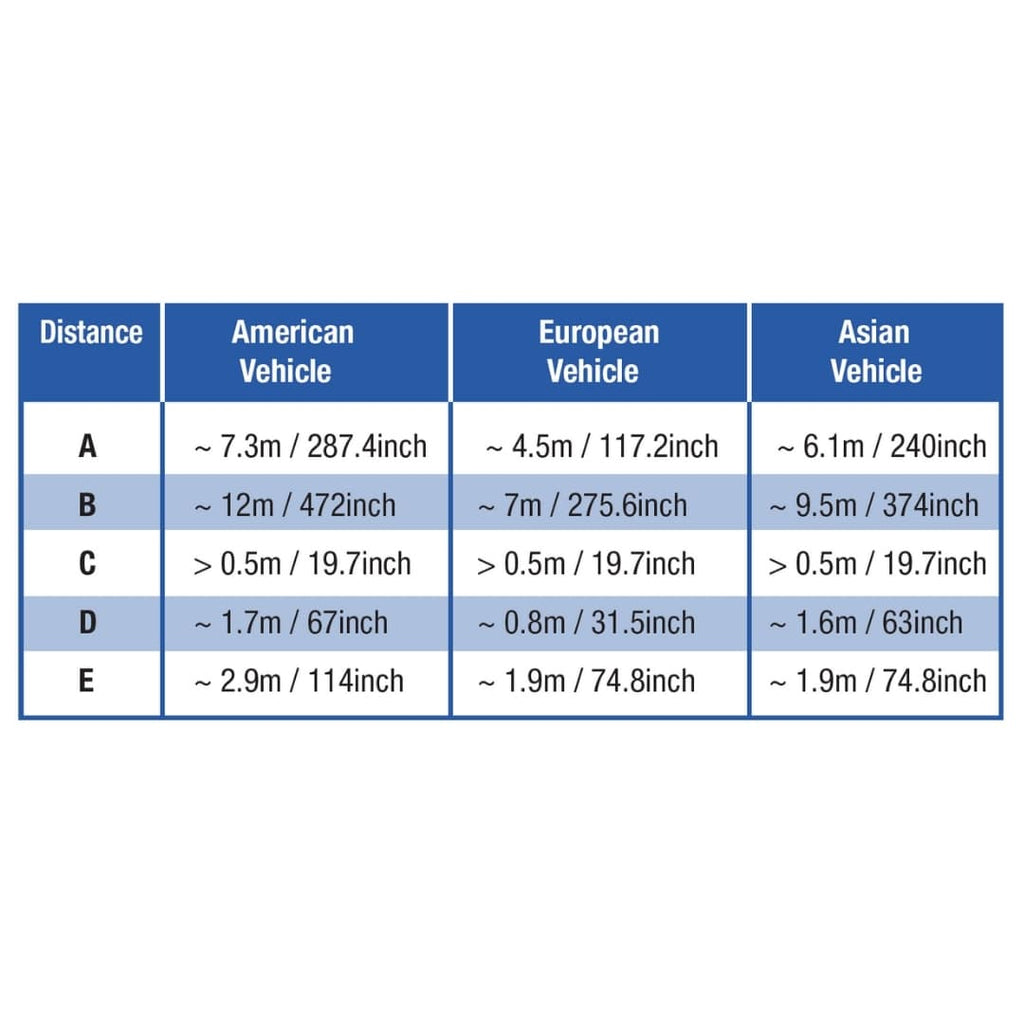

Space Requirements

ADAS Mobile Return On Investment (ROI)


Learn more about the powerful LAUNCH X-431 ADAS
